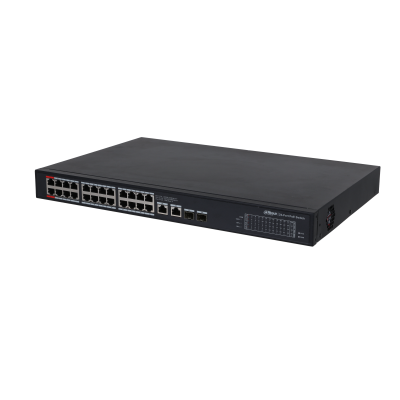

سوئیچ ۲۸ پورت گیگابیتی داهوا مدل DH-PFS3228-24GT-360

Certification

Layer

Layer 2

Managed

No

Switching Capacity

52 Gbps

Packet Forwarding Rate

38.688 Mpps

Packet Buffer Memory

4 Mbit

MAC Table Size

8K

Standards Compliance

IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z

Hardware Feature

Standard Power Supply

Yes

PoE

Yes

Ethernet Port

24

Optical Port

2

Ethernet Port Rate

1 Gbps

Optical Port Rate

1 Gbps

Number of Bussiness Card Slots

Port 1–24: 24 × RJ45 10/100/1000 M (PoE)
Port 25–26: 2 × RJ45 10/100/1000 M (uplink)
Port 27–28: 2 × SFP 1000 M (uplink)

Power Supply

100V AC–240V AC

Operating Temperature

–10°C to 55°C (14°F to 131°F)

Operating Humidity

10%–90%

Storage Humidity

5%–95%

Power Consumption

Idling: 8W
Full load: 360W

PoE

PoE Standard

IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt

PoE Budget

Port 1–2≤90W, Port 3–24≤30W, total≤360W

PoE Pin Assignment

PoE/Hi-PoE: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
